Tell us about your truckEnter the exact model year+
Start with the exact truck, then disclose only the accessories or changes that apply.
These details stay with the configured order for review before fabrication.
Please complete the highlighted vehicle details before ordering.
Approved model years: 2010-2018.
Select the exact year to continue to bed-liner and accessory details.
Installed price
$5,125.00
Drawer interior
71.4 in L x 46.6 in W x 10.1 in H
Drawer extension
89% · 63.5 in travel
Approximate weight
288 lb
Mounting
Confirmed during fitment review
Current build time
4-6 weeks
Included in the installed price
Model-specific wing plates
Vehicle mounting hardware
Standard factory installation — typically about one hour
Alignment and function check
Owner walkthrough and care guidance
Applicable limited warranty
System overview

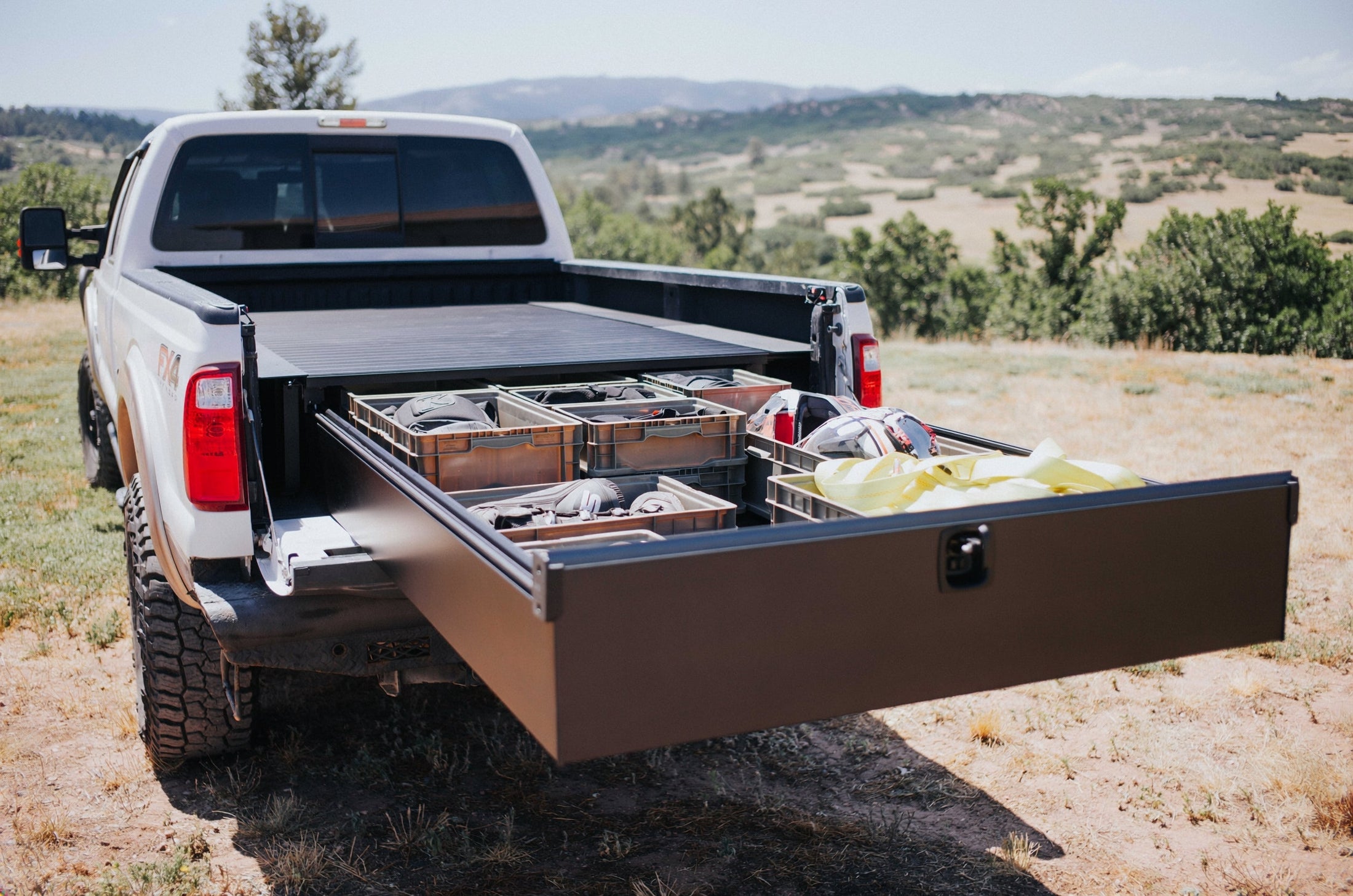

More usable storage, one continuous drawer. A full cargo platform and integrated HD T-slot mounting turn the truck bed into a configurable system for work, travel, and everyday gear.
01 / Usable volume
108% more / 2.08x usable in-drawer volume. 186.7 vs. 89.8 gallons in the matched 8-foot configuration, calculated from listed usable interior dimensions.
02 / Ultra-wide access + HD T-slot
One continuous, ultra-wide drawer—no center split. HD T-slot mounting spans the platform deck, drawer floor, and drawer sides.
03 / Extension
85-89% model-specific drawer extension. Brings stored gear to the tailgate.
04 / Protection
Gasket-sealed, weather-resistant, dust-resistant, and lockable. A locking compression latch and pressure-equalizing vent provision support the enclosure.
Custom-extruded 6063-T6 aluminum. Black Type II, Class 1 architectural-grade anodized finish.
Current build time4-6 weeks
Factory install
+
First customer builds are underway
Your Silver Bullet drawer system includes and requires factory installation in Palmer Lake, Colorado. Fitment, configuration, and appointment details are confirmed before production.
Payment, installation, and warranty details
Checkout collects the full selected price. Standard factory installation is included. Eligible customers may see Shop Pay Installments as a payment choice during checkout.
Once the final configuration is approved and production starts, the order is final under the posted order terms.
Consumer shipping updates
Get notified when shipping opens+
Future shipping updates
Need shipping instead?
Silver Bullet drawer systems currently include factory installation in Palmer Lake. Join the list and we’ll email you when shipping to customers becomes available.
By joining, you agree to receive Silver Bullet shipping-availability emails. Unsubscribe anytime. Privacy policy.
Error This field is required.
Built to order. Factory installation is required in Palmer Lake, Colorado.
Exact matched comparison
The Silver Bullet Advantage
Compare exact drawer dimensions, extension, and usable in-drawer volume against a leading comparable drawer system for the bed length selected above. Changing the bed length updates this comparison.
Width compares Silver Bullet's one full-width drawer with the matched combined interior drawer width. For the 8-foot comparison, the leading system has two 18-inch drawers, 36 inches combined, each 72 inches long and 8 inches high. Length and height compare the dimensions shown. Volume compares combined in-drawer volume; the 8-foot totals apply the same length x width x height calculation to both systems. Extension compares Silver Bullet drawer travel, calculated from interior length times the model-specific extension percentage, with the leading system's published extension distance.
Silver Bullet volume is calculated from the listed interior drawer dimensions. The 8-foot comparison applies the same dimensional method to the leading system's two 72 x 18 x 8 in drawers, producing 89.8 gal combined versus Silver Bullet's 186.7 gal and a 108% gain. Other model rows use the listed source values for their matched bed class. Silver Bullet system dimensions describe the core system; included model-specific wing plates add side coverage. Percentages and dimensions are rounded. The leading system's 8-foot fitments use a standard-length drawer system with a separate load-floor extension. Review the comparison methodology and dated source record.
Third-party specifications and trademarks remain the property of their respective owners. Silver Bullet is not affiliated with or endorsed by the compared manufacturer.
Integrated mounting versatility
Built to Adapt, From Platform to Drawer
A purpose-selected HD-series profile carries mounting access across the platform deck, drawer floor, and drawer sides. The architecture scales to each truck and bed length so gear can be mounted, moved, and reconfigured without drilling permanent holes.
More than 350 linear ftof integrated T-slot mounting on the 8-foot configurationHD-series deckheavy-duty T-slot profile across the platform3-inch gridtop deck and drawer floor4 per sidelongitudinal drawer-side channels
01 / Top deck
HD-Series 3-Inch Grid
A heavy-duty T-slot profile forms the platform's full-width 3-inch mounting grid for movable tie-downs, chocks, brackets, recovery-board mounts, and properly engineered tank mounts.
02 / Drawer floor
Full-Width 3-Inch Grid
The same repeating pattern supports removable dividers, tool holders, mounting plates compatible with Milwaukee PACKOUT, cargo stops, and equipment cradles inside the ultra-wide drawer.
03 / Drawer sides
Four Channels Per Side
Longitudinal channels keep frequently used tools, accessories, and custom brackets movable and within reach throughout the drawer.
Build your loadout
Effectively Open-Ended Mounting Positions
The same system can evolve from daily work to ranch duty, trail recovery, moto weekends, or expedition travel without rebuilding the drawer around one permanent setup.
Mounting plates compatible with Milwaukee PACKOUT
Properly engineered fuel or water tank mounts
Wheel chocks and movable tie-down points
Recovery-board and recovery-gear brackets
Air compressors and power-system mounts
Fire extinguishers, tool holders, and dividers
Bike, moto, and cargo-stop hardware
Custom brackets for changing work demands
Mounting and trademark notes
All mounts and accessories must be properly engineered, rated, secured, and installed with suitable hardware. Vehicle payload limits and Silver Bullet's distributed-load ratings still apply. Milwaukee and PACKOUT are trademarks of Milwaukee Electric Tool Corporation; Silver Bullet is not affiliated with or endorsed by Milwaukee.
Model-specific referenceFull dimensions and weights+
Open the reference table for every supported bed length. The selected configuration's core dimensions remain visible near the bed-length selector above.
Configuration
Model years
Overall system
Drawer interior L x W x H
Drawer extension
Approx. weight
6 ft 4 in bedSB-RAM2500-10P-64FT-R1
2010-2018
75 in L / 12.5 in H
71.4 in L x 46.6 in W x 10.1 in H
63.5 in (89%)
288 lb
8 ft bedSB-RAM2500-10P-8FT-R1
2010-2018
95 in L / 12.5 in H
91.4 in L x 46.6 in W x 10.1 in H
77.7 in (85%)
365 lb
6 ft 4 in bedSB-RAM2500-19P-64FT-R1
2019-2026
75 in L / 12.5 in H
71.4 in L x 46.6 in W x 10.1 in H
63.5 in (89%)
288 lb
8 ft bedSB-RAM2500-19P-8FT-R1
2019-2026
95 in L / 12.5 in H
91.4 in L x 46.6 in W x 10.1 in H
77.7 in (85%)
365 lb
Dimensions and approximate weights are configuration-specific reference values. After purchase, Silver Bullet confirms the selected vehicle configuration and reviews disclosed bed accessories before releasing the system to fabrication.
Order, build, and factory installation
A Clear Path From Configuration to Handoff
Each system is built to order for a specific truck configuration, then installed by the same Palmer Lake team that built it.
See the 5-step order and installation process
01Choose your configuration
Select the listed truck family and bed length that match your vehicle.
02Place the order
The displayed price includes model-specific wing plates and standard factory installation.
03Confirm vehicle details
After purchase, we confirm the selected configuration and review disclosed bed accessories before fabrication.
04Build and schedule
Silver Bullet builds the system, then coordinates the final Palmer Lake installation appointment.
05Install and hand off
We mount, align, and function-check the system, then walk through use, loading, and care.
After installationOwnership, care, and serviceability+
The system is designed for demanding use, clear maintenance, and direct support from the people who build it.
Protection
Gasket-Sealed and Lockable
A locking compression latch pulls the drawer face firmly against its perimeter gasket. Together with the pressure-equalizing vent provision, the enclosure provides weather- and dust-resistant protection and adds theft resistance by helping deter opportunistic access.
Serviceability
Accessible, Replaceable Components
Seals, mounting points, rollers, and moving hardware can be inspected and serviced. Owner handoff includes practical care guidance.
Accountability
Built in Palmer Lake, Colorado
Design, engineering, testing, manufacturing, factory installation, and support happen here at the foot of the Rocky Mountains, using U.S.-sourced aluminum and rubber.
Innovation
Patent-Pending Architecture
A provisional patent covers the roller, gasket, extrusion, and related system architecture, with a broader portfolio in development.
Questions before ordering
How is my truck configuration confirmed?
2010-2018, 2019-2026 Ram 2500; 6 ft 4 in and 8 ft beds. Listed standard-box configurations are engineered from factory OEM vehicle CAD. RamBox trucks are not included. Generation-specific mounting and wing-plate geometry, existing fifth-wheel/gooseneck hardware, bed liners, and other disclosed bed accessories are reviewed before production.
How does the system protect stored gear?
Silver Bullet uses a gasket-sealed enclosure, a pressure-equalizing vent provision, and a locking compression latch. Together they provide weather- and dust-resistant protection, hold the drawer face firmly against its perimeter gasket, and add theft resistance by helping deter opportunistic access.
What do the load ratings mean?
The 2,000 lb platform-deck rating and 400 lb drawer rating are both based on distributed loading. Point loading, cargo securement, driving conditions, and vehicle payload limits still apply.
Can my drawer system be shipped instead of factory installed?
Not at launch. Silver Bullet drawer systems are currently factory installed at the Silver Bullet shop in Palmer Lake, Colorado, rather than shipped to customers. Consumer shipping is planned for a later phase. Join the shipping availability list for updates. Approved dealer orders use a separate quote and fulfillment process.
